Integration process

Hello! This is documentation for production environment.

1. Overview
2. Integration Credentials
3. Integration Process
   • Merchant Onboarding and Integration Steps
   • Integration diagram
   • Check before starting to work in Prod Environment
   • Sequence diagram for deposit
   • Sequence diagram for remit
4. Get Available Payment Methods
5. Initiate Transaction
   • Deposit Transaction
   • Remit Transaction
6. Get Transaction Status
7. Transaction Status Callback
   • Deposit Transaction Status Callback
   • Remit Transaction Status Callback
8. How to make a Refund
9. Get Merchant Account Balance
10. Get Rates
11. Get Transaction History in CSV Format

Overview

This document provides a detailed guide on direct Host-to-Host integration with the APS API. It outlines the interaction between parties for processing deposit and remit payments.

Participants:

• Customer - The end user who makes a deposit or receives a payment (remit) from the merchant
• Merchant - Your company
• H2H-Backend - The APS backend system

There are two available transaction flows:

• Deposit Flow – The process where customers make payments to the merchant.
• Remit Flow – The process where the merchant remits funds to the customer.

In this guide, the terms remit and payout are used interchangeably to refer to transactions where funds are transferred from the merchant to the customer.

Integration Credentials

During the onboarding process, you will receive a set of credentials to access the APS API for both staging and production environments. APS API uses token-based authentication.

Required Authentication Headers

Every API request must include the following headers:

• App Token – Passed in the X-App-Token header.
• App Secret – Passed in the X-App-Secret header.

Requests missing these credentials will be rejected.

Other API Credentials

• Merchant GUID – A unique identifier for the merchant, used in the API endpoint path as merchantGUID.
• Callback Secret Key – Used to validate callback requests from APS. Status callbacks include a request signature for verification.

Environment-Specific URLs

• Staging Environment: https://fpf-api.armenotech.net
• Production Environment: https://fpf-api.proc-gw.com

Each environment has its own credentials, so ensure you use the correct set when switching between staging and production.

Integration Process

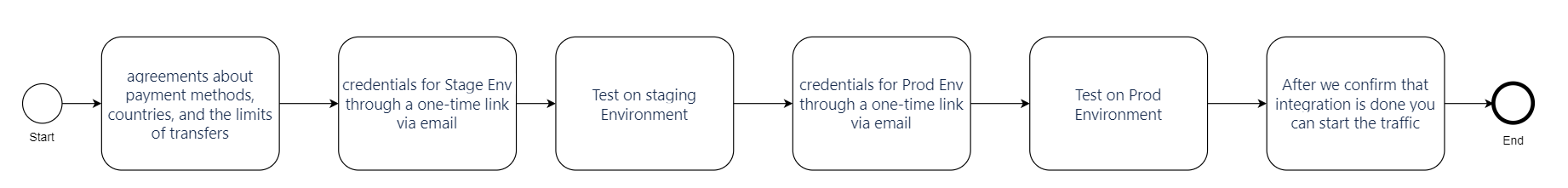

Merchant Onboarding and Integration Steps

1. Agreement on Payment Methods, Countries, and Limits

You (the Merchant) and APS agree on the supported payment methods, geographic regions, and transfer limits. For information regarding limits and geographical coverage, please contact your account manager.

2. Receiving Credentials for the Staging Environment

We will provide you with credentials for the Staging Environment via a one-time link sent to your email.

3. Verifying Credentials

Before making any API requests, ensure that the tokens associated with your merchantGUID match the credentials provided. Please verify these credentials with the APS team before proceeding.

4. Familiarizing Yourself with the API and Testing

Review this document and proceed with testing:

• Start by retrieving all available payment methods. Use the relevant API request to receive an array of payment methods available to you. The response will include details such as currency, fees, and limits for each method.
• Make 1 or 2 test transactions and test a refund process. Refer to the How to make a Refund section for guidance.

5. Transition to the Production Environment

After successfully completing the tests and signing all necessary documents, you can finalize the settings. At this point, we will send you credentials for the Production Environment.

Note: The credentials for the Production Environment differ from those for the Staging Environment.

6. Using the Production Environment

The API requests will function the same way in the Production Environment. You will receive a separate document containing the necessary credentials, links, and guides for production use.

7. Access to the Merchant Portal

• You will also gain access to the Merchant Portal, where you can log in using the email address where you received your credentials.
• For detailed instructions on how to use the Merchant Portal, please refer to the Merchant Portal Guide.

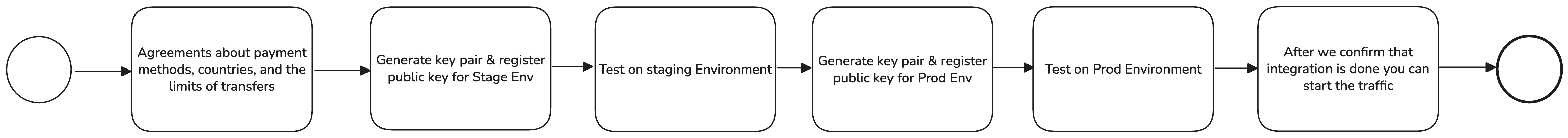

Integration Diagram

Check-list before Go Live

1. Access to Failure Reasons Ensure that your operations team has access to the external_message field in the callback. This field contains the reason for transaction failures, which can help minimize the number of support requests to us.

2. Traffic Launch Notification Notify us at least 1 day in advance before launching live traffic. Do not initiate traffic without our approval.

3. Support After Integration

   • Once integration is complete, you will have access to the Support Portal, where your operations team can resolve issues in the Production environment.

   • To obtain access to the support portal, provide your account manager with the email addresses of your employees.

   • For any inquiries related to live traffic, please use the Support Portal. Before reaching out, check the provided links to identify error causes:

     • Portal for deposit transactions

     • Portal for remit transactions.

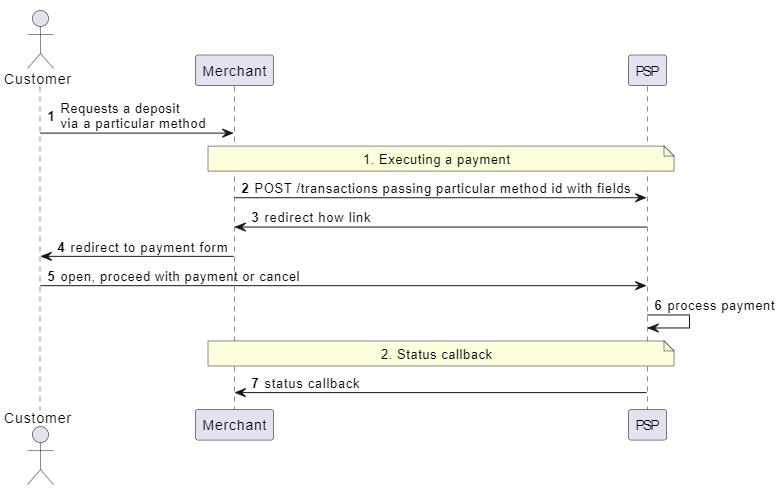

Sequence Diagram for Deposit

The happy-path flow is as follows:

1. Customer Initiates Deposit: A customer initiates a deposit request using a specific payment method, typically accessed through a button or link on the merchant's website or application.

2. Merchant Submits Transaction Data: The merchant submits the transaction details to the payment system.

3. PSP Sends Payment Link: The Payment Service Provider (PSP) generates a payment link and sends it to the merchant.

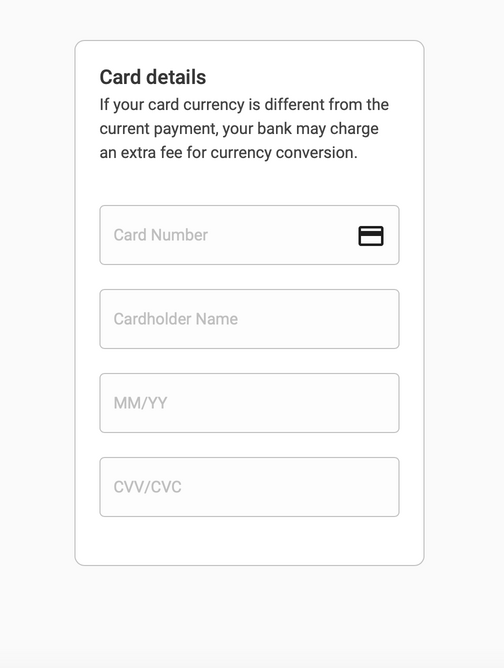

4. Customer Redirected to Payment Form: The merchant redirects the customer to the payment form via the provided link.

5. Customer Redirected Back to Merchant: After successfully registering the deposit, the H2H system redirects the customer back to the merchant’s website.

6. PSP Sends Callback with Transaction Result: The PSP processes the payment and sends an HTTP callback to the merchant containing the transaction result. Refer to the Get Transaction Status chapter for more details.

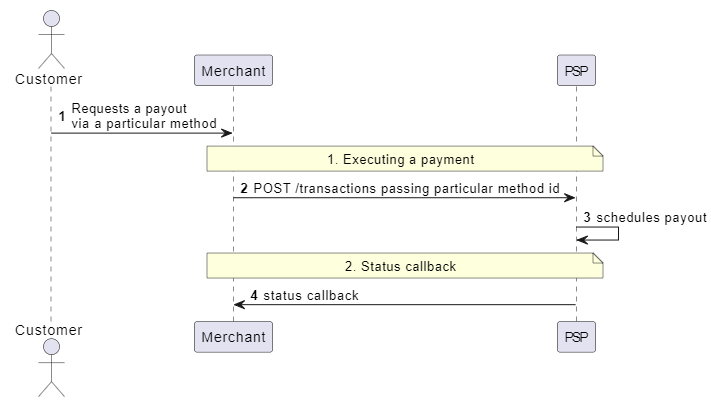

Sequence Diagram for Remit

The happy-path flow is as follows:

1. Customer Initiates Remit: A customer initiates a remit request using a specific payment method, typically accessed through a button or link on the merchant's website or application.

2. Merchant Submits Transaction Data: The merchant submits the transaction details to the payment system.

3. Customer Redirected Back to Merchant: After successfully registering the remit, the Payment Service Provider (PSP) redirects the customer back to the merchant’s website.

4. PSP Sends Callback with Transaction Status: The PSP processes the remit and sends an HTTP callback to the merchant with the transaction status. Refer to the Get Transaction Status chapter for more details.

Get Available Payment Methods

The GET /info request retrieves information about available payment methods and their associated payment details. By making this request, you can obtain all the necessary information regarding the connected payment methods.

Example request:

Get payment methods

curl https://fpf-api.proc-gw.com/api/v3/merchantGUID/info \
        --header 'X-App-Token: APP_KEY'
        --header 'X-App-Secret: APP_SECRET'


Example response:

  {
    "methods": [
      {
        "guid": "c8e18874-ce90-4a6a-86cd-bcd17f815476:d93717d0-86d0-435a-8191-ea1b43d04a96",
        "fee_fixed": 0,
        "fee_percent": 0,
        "customer_fee_percent": 0,
        "customer_fee_fixed": 0,
        "min_amount": 1.43,
        "max_amount": 570.72,
        "label": "EUR",
        "logo_url": "https://fpf-assets.armenotech.com/mastercard.svg",
        "mobile_logo_url": "https://fpf-assets.armenotech.com/mastercard.svg",
        "payment_group": "BANKCARD",
        "payment_group_name": "Bank card",
        "digits_delivery": 2,
        "digits_asset": 2,
        "rate": 1.4,
        "delivery_currency": "iso4217:EUR",
        "method_currency": "BRL",
        "method_symbol": "R$",
        "country_code": "WWC",
        "direction": "in"
        "deposit": {
          "guid": "c8e18874-ce90-4a6a-86cd-bcd17f815476:d93717d0-86d0-435a-8191-ea1b43d04a96",
          "fields": {
            "external_id": {
              "optional": true,
              "description": "Merchant’s external ID",
              "hidden": true
            },
            "redirect_url": {
              "optional": true,
              "description": "url where a customer will be redirected with parameters status=[successful|failed|canceled], transaction_id, method, amount, currency",
              "hidden": true,
            },
            "status_callback_url": {
              "optional": true,
              "description": "Callback URL",
              "hidden": true
            }
          },
        }
      }
     ]
 }

The response is an array of available payment methods. Each method includes detailed information about the payment currency, fees, and limits.

Name	Description
guid	Payment method guid
fee_fixed	Fixed fee according to the contract with the merchant
fee_percent	Percent fee according to the contract with the merchant
customer_fee_percent	Percent fee to be paid by an end user according to the contract with the merchant
customer_fee_fixed	Fixed fee to be paid by an end user according to the contract with the merchant
min_amount	Minimum possible amount per transaction
max_amount	Maximum possible amount per transaction
label	Method Label
logo_url	Method Logo
mobile_logo_url	Mobile method logo
payment_group	Additional information on the method
payment_group_name	Additional information on the method
digits_delivery	Number of significant digits for delivery currency
digits_asset	Number of significant digits for asset
rate	Conversion rate of asset to delivery currency
delivery_currency	Currency code
method_currency	The currency in which all amounts are calculated using this method
method_symbol	Currency symbol (may be missing) to display to the client
country_code	Country code
direction	Two input/output values are possible. They say in which direction the payment takes place in = deposit, out = remit
deposit/remit	The object containing the fields of the payment method is called deposit/remit
fields	An object that lists the fields required for transfer within each payment method. The required fields may vary even within the same payment method, so we recommend making a /info request before each payment to ensure you collect the correct fields.
field.optional	If true, the parameter is not required to be filled in
field.description	Description of the field
field.hidden	Recommendation whether to hide this field from customer

Initiate Transaction

Deposit Transaction

In the example request below, you can see how to initiate deposit transactions:

Example request with the required fields:

Initiate transaction

curl POST https://fpf-api.proc-gw.com/api/v3/merchantGUID/transactions \
--header 'Content-Type: application/json'
--header 'X-App-Token: {APP_KEY}'
--header 'X-App-Secret: {APP_SECRET}'
--data-raw '{
      "amount": 100.2,
      "fields": {
          "transaction": {
              "deposit_method": "06d34870-a9d3-4baa-afce-995c1f385d1d:81180240-65f1-4ed0-9f1f-be1e0b4fa985"
          }
      }
  }'


You can get the list of optional fields making Get Available Payment Methods request.

Example request with the optional fields:

Initiate transaction with optional fields

curl POST https://fpf-api.proc-gw.com/api/v3/merchantGUID/transactions \
--header 'Content-Type: application/json'
--header 'X-App-Token: {APP_KEY}'
--header 'X-App-Secret: {APP_SECRET}'
--data-raw '{
      "amount": 100.2,
      "fields": {
          "transaction": {
              "deposit_method": "06d34870-a9d3-4baa-afce-995c1f385d1d:81180240-65f1-4ed0-9f1f-be1e0b4fa985",
              "deposit": {
                      "redirect_url": "https://www.google.com",
                      "status_callback_url": "https://fast-payment-flow-merchant.armenotech.dev/94b9f3ed-ee84-4789-8c4b-41ee8c61ad41/transactions",
                      "external_id": "external transaction identifier, string",
                      "payer_id": "external payer identifier, string",
                      "customer_ip_address": "93.109.244.86",
                      "from_country": "GB",
                      "from_last_name": "Smith",
                      "from_first_name": "John",
                      "billing_street": "Test street",
                      "billing_town": "London",
                      "billing_post_code": "0839",
                      "from_email": "customer@gmail.com",
                      "referer_domain": "www.externalwebsite.com",
                      "locale_lang": "es"
              }
          }
      }
  }'


When making a request to create a transaction, it is important to ensure the correct nesting of fields in the request body.

Name	Description
amount	The total amount of the transaction, represented in the currency of the payment method, must be a positive number.
deposit_method	A unique identifier for the payment method. Retrieve the available payment methods using the Get Available Payment Methods request.
deposit	An object containing the details of the transaction. This includes fields necessary for processing.
status_callback_url	The URL to which callback requests will be sent when the transaction status changes. Ensure that this endpoint is publicly accessible and capable of handling incoming requests for proper notification of status updates.
redirect_url	A URL to which the customer will be redirected upon completion of the deposit. This field is applicable only to deposit transactions. Note that some payment methods may not support redirection.
external_id	The merchant's unique identifier for the transaction. It is a string of up to 96 characters. Uniqueness across all transactions is not required.
payer_id	An identifier for the payer within the merchant's internal system. It is a string of up to 96 characters. Uniqueness across transactions is not required.
Transaction Processing Recommendations	For improved transaction processing, we recommend submitting all relevant fields in full, ensuring they contain accurate and reliable information about the client:
customer_ip_address	The IPv4 or IPv6 address of the customer's device.
from_last_name	The last name of the customer. It is a string with 2 to 32 characters, which may include spaces, dots, dashes, or ampersands.
from_first_name	The first name of the customer. It is a string with 2 to 32 characters, which may include spaces, dots, dashes, or ampersands.
from_country	The country from which the transaction is being made. ISO 3166 country names, alpha-2 or alpha-3 country codes.
billing_street	The street address provided by the customer when opening their bank account. Must contain 2-100 characters.
billing_town	The town provided by the customer when opening their bank account. It is a string with 2 to 32 characters, which may include spaces, dots, dashes, or ampersands.
billing_post_code	The postcode provided by the customer when opening their bank account. Must contain 0-20 characters.
from_email	The email address provided by the customer when opening their bank account. Must contain 0-100 characters.
referer_domain	The domain of the original URL from which the transaction request originated. Used to identify the website or application that directed the user to complete the payment.
locale_lang	An ISO 639-1 language code to set the localization of the checkout form. Supported languages: en - English, es - Spanish, pt - Portuguese, de - German, fr - French.

Note: The IP address and email must belong to the user, be consistent for one card, and should not be the same across all traffic transactions or GEO locations. The billing address must, at a minimum, contain the user’s actual country and postal code. The billing address country for each issuer must match the issuer’s country.

Example deposit response:

  {
      "id": "1a2d87dc-3a6e-48dd-be69-8ad6492cc8b4",
      "amount": 1000,
      "amount_in": 1000,
      "customer_fee": 0,
      "contract_fee": 0,
      "merchant_fee": 0,
      "amount_out": 1000,
      "amount_body": 1000,
      "how": "https://cert.monnetpayments.com/api-payin/payment/voucher/27685?verification=4bdf290c8145af72f75c7fcefb99f33f5ac29eac7071d5dacf03e518e895a4f3d8e91dc803af10195f00ee0c58d7e4c6091ed2c8cfaa631d953bcae250a132d0",
      "extra_info": {
          "displayed_fields": [
              "is_redirect"
          ],
          "external_transaction_id": "1a2d87dc-3a6e-48dd-be69-8ad6492cc8b4",
          "is_redirect": "true",
          "transaction_id": "1a2d87dc-3a6e-48dd-be69-8ad6492cc8b4"
      }
  }

In response you will get the following:

Name	Description
id	Unique identifier for the transaction.
amount	Total amount of the transaction, including any applicable fees.
amount_in	The total amount paid by the customer.
customer_fee	The fee charged to the customer based on the merchant's contract terms.
contract_fee	The fee charged by APS according to the terms of the merchant's contract.
merchant_fee	The calculated fee according to the merchant's contract. This fee is retained by the merchant and can be negative if the merchant opts to compensate the customer's fee.
amount_out	The final amount settled to the merchant's account by APS after deducting any applicable fees.
amount_body	The amount of the payment excluding any commissions or fees.
amount_in	Amount that a customer pays
how	External URL to the checkout form. The merchant's application redirects the customer to this external system for payment confirmation and execution.
external_transaction_id	The transaction identifier in the external payment system. For Binance, this field contains the APS transaction identifier.
is_redirect	Flag indicating if the customer was redirected to an external payment system.
merchant_external_id	The transaction ID from the merchant, as received in the /transactions request under external_id

Note: If you get a response that is not 200 OK, you can ask the integration team what is the problem.

Handling the "how" field

Redirect to checkout form

Redirecting to the checkout form is required for payment methods where the customer must complete the payment via a web form. In this case, the how field contains a link to the web form where the customer provides payment details.

The merchant’s application should redirect the customer to the checkout form using the URL received in the how element of the /transactions response.

For example: https://app.payment.com/payment/secpay?linkToken=793c9fb78be54d898a041d370303c8c7&_dp=Ym5jOi8vYXBwLmJpbmFuY2UuY29tL3BheW1lbnQvc2VjcGF5P3RlbXBUb2tlbj1CYVpqdmZoWDI0NUcyaWF5UGV0TVFReURMeWF6SnM2SSZyZXR1cm5MaW5rPWh0dHBzOi8vc3RhZ2UtNWNjODdlZjgtY2NkNy00Nzc0LTg2ZTAtNDViNTE1MzQ5MjVjLXBheW1lbnRkcml2ZXIuYXJtZW5vdGVjaC5uZXQvcmVkaXJlY3Q_dHJhbnNhY3Rpb25fZ3VpZD05NDk0NmM2Ny0zODk1LTRiYjEtODg4Yi1lNzNlNzM0YWNmNDYmY2FuY2VsTGluaz1odHRwczovL3N0YWdlLTVjYzg3ZWY4LWNjZDctNDc3NC04NmUwLTQ1YjUxNTM0OTI1Yy1wYXltZW50ZHJpdmVyLmFybWVub3RlY2gubmV0L3JlZGlyZWN0P3RyYW5zYWN0aW9uX2d1aWQ9OTQ5NDZjNjctMzg5NS00YmIxLTg4OGItZTczZTczNGFjZjQ2

You will need to take the “how” link from the response and redirect customer to checkout form:

The customer will enter the card details.

Direct post of bank card data

The APS bank card payment method supports the direct posting of payment details, including the card number, cardholder name, expiry date, and CVV/CVC. To process an APS bank card deposit, make a POST request to the URL provided in the how field with the customer’s payment details.

When using the bank card payment method, you can directly transfer the payment details to us.

Content-Type: application/json

Request example:

 curl 'https://form.pci-gw.com/payment/TRANSACTION_ID/merchantGUID'
  -H 'Content-Type: application/json'
  --data-raw '{
    "number": "4111111111111111",
    "holder": "John Doe",
    "exp_month": 10,
    "exp_year": 25,
    "csc": "010"
  }


Request fields:

Name	Type	Description
number	string	The bank card number.
holder	string	Name of the cardholder as it appears on the card.
exp_month	int	Expiration month of the card (1-12).
exp_year	int (last 2 digits)	Last two digits of the card's expiration year.
csc	string (3 digits)	The 3-digit CVC/CVV security code from the back of the card.
from_api	boolean	Indicates the 3D Secure process: if false, the customer will be redirected to a 3D Secure page; if true, a link to the 3D Secure page will be provided in the auth_3d_url attribute of the response.

Success response example:

200
{
  "status": "success",
  "auth_3d_url": "https://some3ds.com"
}

Name	Type	Description
auth_3d_url	string (url, optional)	The URL for 3D Secure (3DS) authentication. The customer should be redirected to this URL to complete the 3DS verification process.

Fail response example:

400
{
  "status": "fail",
  "retryable": false,
  "external_status": "something_went_wrong",
  "external_message": "We weren't able to process your transaction."
}

Possible cases

Case	Status code	Retryable	Example response
Request success and transaction went with 3Ds flow.	200	false	{ "auth_3d_url": "https://example.com/auth_3d_url", "redirect_url": "https://example.com/redirect_url", "status": "success" }
Request success and 2d flow	200	false	{ "auth_3d_url": "https://example.com/auth_3d_url", "redirect_url": "https://example.com/redirect_url", "status": "success" }
Invalid order state	400	false	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": false, "external_status": "something_went_wrong", "external_message": "We weren't able to process your transaction." }
Bad request (Invalid request format)	400	false	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": false, "external_status": "something_went_wrong", "external_message": "We weren't able to process your transaction." }
Card holder is empty	400	true	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": true, "external_status": "card_holder_is_empty", "external_message": "Card holder field is empty." }
Card expired	400	true	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": true, "external_status": "card_is_expired", "external_message": "Your card has expired." }
Invalid expire month	400	true	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": true, "external_status": "invalid_card", "external_message": "Invalid card details." }
Invalid CSC	400	true	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": true, "external_status": "invalid_card", "external_message": "Invalid card details." }
Invalid card number length	400	true	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": true, "external_status": "invalid_card_number_length", "external_message": "Invalid card number length." }
Invalid card number check digit value	400	true	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": true, "external_status": "invalid_card", "external_message": "Invalid card details." }
Service Error	400	false	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": false, "external_status": "something_went_wrong", "external_message": "We weren't able to process your transaction." }
Provider Error (Error while processing request)	400	false	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": false, "external_status": "external_error", "external_message": "Invalid response from bank." }
Visa not allowed	400	false	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": false, "external_status": "visa_not_allowed", "external_message": "Bank card type Visa is not allowed." }
Card user not authorized for payment	400	false	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": false, "external_status": "verification_error", "external_message": "Payment verification has failed." }
Insufficient funds	400	false	{ "auth_3d_url": null, "redirect_url": "", "status": "fail", "retryable": false, "external_status": "insufficient_funds", "external_message": "Insufficient funds on the card balance." }

Note: you don't need "how" field for remit payments, as you have already provided the card number during the initiation step.

If you have successfully made a request, you can check the transaction status in two ways:

• Waiting for the callback: you can learn information about the callbacks here.

• Making a status request:: you can learn information about the requests here.

Remit Transaction

Note: to initiate a remit transaction, you must have sufficient funds in your balance. Please remember to top up your balance via the financial chat. We will provide you with access to this chat.

Note: for testing remit transactions in the Staging Environment, we will top up your balance.

To ensure you have all the required fields, please refer to the section on Get Available Payment Methods

Example of bank card remit transaction request:

Initiate transaction for remit

curl POST https://fpf-api.proc-gw.com/api/v3/merchantGUID/transactions \
--header 'Content-Type: application/json'
--header 'X-App-Token: {APP_KEY}'
--header 'X-App-Secret: {APP_SECRET}'
--data-raw '{
      "amount": 100.2,
      "fields": {
          "transaction": {
              "remit_method": "06d34870-a9d3-4baa-afce-995c1f385d1d:81180240-65f1-4ed0-9f1f-be1e0b4fa985",
              "remit": {
			"external_id": "merchant_external_id_string",
			"payer_id": "merchant_payer_id_string",
			"customer_ip_address": "93.109.244.86",
			"referer_domain": "www.externalwebsite.com",
			"redirect_url": "https://www.yourswebsite.com/redirect",
			"status_callback_url": "https://www.yourswebsite.com/callback",
			"from_country": "USA",
			"to_bank_card": "2222444422224444",
			"to_bank_card_exp": "12/31"
              }
          }
      }
  }'


When making a request to create a transaction, it is crucial to ensure that the correct nesting of fields is maintained in the request body.

Name	Description
amount	The base amount of the transaction, excluding any fees or commissions.
remit_method	The payment method identifier (GUID). You can obtain this by making a request for Get Available Payment Methods.
remit	An object containing additional fields related to the transaction, such as payment details.
status_callback_url	The URL where callback requests will be sent when the transaction status changes.
redirect_url	The URL to which the customer will be redirected after the deposit is completed. This applies only to deposit transactions, and note that some payment methods may not support redirection..
external_id	The merchant's transaction ID, which can be up to 96 characters long. This ID is not required to be unique across all of the merchant's transactions.
payer_id	The payer's identifier in the merchant's internal system, up to 96 characters long. This ID is not required to be unique across the merchant's transactions.
referer_domain	The domain of the original URL from which the transaction request originated. Used to identify the website or application that directed the user to complete the payment.

Example of remit transaction response:

{
      "id": "dfba9a85-464f-4f88-9afc-865296bca4ef",
      "amount": 103.7,
      "amount_in": 103.7,
      "customer_fee": 0,
      "contract_fee": 3.7,
      "merchant_fee": 3.7,
      "amount_out": 100,
      "amount_body": 100,
      "extra_info": null
}

Get Transaction Status

You can request the transaction status via the API using the transaction ID.

Example request:

Get Status Transaction

curl https://fpf-api.proc-gw.com/api/v3/merchantGUID/TRANSACTION_ID \
        --header 'X-App-Token: APP_KEY'
        --header 'X-App-Secret: APP_SECRET'
        --header 'Content-Type: application/json'


Example response:

{
    "id": "f2a86886-675c-4f55-a247-757a4ef55e53",
    "external_id": "test 2434",
    "status": "completed",
    "refunded": true,
    "amount": 3,
    "amount_in": 3,
    "amount_out": 3,
    "amount_fee": 0,
    "amount_body": 3,
    "customer_fee": 0,
    "merchant_fee": 0,
    "external_message": "APPROVED",
    "refunds": {
        "amount_refunded": "3",
        "amount_fee": "0",
        "payments": [
            {
                "id": "ee9de236-6f6a-48b7-b1ad-bb496e6ba5dc",
                "external_id": "{YOUR_REFUND_EXTERNAL_ID}",
                "status": "completed",
                "amount": 3,
                "rrn": "688447"
            }
        ]
    }
}

A JSON object containing the following fields:

Name	Type	Optional	Description
id	UUID	true	Unique identifier for the transaction.
merchant_external_id	string	true	External transaction ID provided by the merchant.
status	string enum	true	Current status of the transaction. Possible values include:
	pending_sender: awaiting payment from the customer.
	pending_external: The customer has made a payment, and the transaction is under AML-check (Anti-Money Laundering). Alternatively, the merchant has initiated a refund, and the refund is pending completion.
	completed: The transaction has been successfully completed.
	error: There was an error processing the transaction.
amount	float	false	The total transaction amount as specified in the request.
refunded	bool	true	Indicates if the transaction was refunded.
amount_in	float	true	The amount paid by the sender. In deposit transactions, this is the amount the customer has paid in the contract currency. In remit transactions, this is the amount charged to execute the transaction.
amount_out	float	true	The received amount. In deposit transactions, this is the amount credited to the merchant. In remit transactions, this is the amount credited to the customer.
amount_fee	float	true	The fee charged based on the contract.
customer_fee	float	true	The fee paid by the customer, as calculated per the contract.
merchant_fee	float	true	The fee paid or earned by the merchant. A positive value means the merchant owes the fee, while a negative value means the merchant benefits.
refunds.amount_refunded	float	true	The amount refunded from the transaction.
refunds.amount_fee	float	true	The fee charged on the refunded amount, according to the contract.
refunds.payments[?].id	UUID	true	Unique identifier for the refund.
refunds.payments[?].external_id	string	true	External refund ID provided by the merchant during the refund creation request.
refunds.payments[?].status	string enum	true	Status of the refund. Possible values include:
	pending: A request has been sent to the acquiring bank to initiate the refund. Status updates will be provided upon receiving feedback.
	completed: The transaction has been fully refunded.
	rejected: The refund request was rejected
refunds.payments[?].amount	float	true	The refund amount including any applicable fees based on the contract.
refunds.payments[?].rrn	string	true	Retrieval Reference Number (RRN), an identifier for the refund provided by the payment provider.

Transaction Status Callback

Before Going Live, ensure that your operations team has access to the external reason provided in the callback within the external_message field. This information is essential for understanding the reasons behind rejected transactions.

The transaction status callback is used to notify merchants about the transaction status following a payment operation.

The Payment Service Provider (PSP) requests the merchant's system by sending a request to the endpoint specified in the status_callback_url field of the /transactions request. The merchant's system should respond with a 200 OK status.

Deposit Callback

Example response:

  "payload": {
    "amount_body": 500,
    "amount_in": 500,
    "amount_out": 475.5,
    "asset": "stellar:APSUSDM:GB7OUO5NY5WQKXJJ7PFFZEJOKN4BA7IOEN3Z6SWAY26LGTREJJYZH2ZT",
    "delivery_currency": "iso4217:USD",
    "deposit_details": {
      "bank_card_mask": "471227******0407",
      "from_first_name": "Saurabh",
      "from_last_name": "Ghodmare",
      "payment_group": "bank_card",
      "payment_method": "r:fab9dcd0-bb93-4f09-b65f-2edb69a3a213"
    },
    "md5_body_sig": "30e93a687812eb759f867d55d77a064d",
    "md5_sig": "a99ec94e699e361fdb33aa50140e474b",
    "merchant_external_id": "202678449",
    "refunded": true,
    "refunds": {
      "amount_fee": "2",
      "amount_refunded": "8",
      "amount_refunded_to_customer": "6",
      "payments": [
        {
          "amount": 502,
          "fee": 2,
          "amount_body": 3,
          "id": "2a8bf37c-3d3d-4280-9e42-680c8ce6150a",
          "external_id": "{YOUR_REFUND_EXTERNAL_ID}",
          "rrn": "435307914502",
          "arn": "123456789123",
          "status": "completed"
        }
      ]
    },
    "sep31_status": "completed",
    "seq": 1724999384570,
    "status": "refunded",
    "transaction_id": "b829f009-afe0-45c2-9996-8941f80bcb0e"
  },

Request body contains the following elements:

Field	Description	Required
transaction_id	Unique identifier for the PSP transaction.	yes
status	Current status of the transaction. Possible values include:	yes
	canceled: Transaction canceled by the payment provider.
	expired: Payment not completed in time, transaction expired
	payed: Payment completed by the customer, but the funds haven't yet settled to the PSP account
	done: Transaction successfully completed.
	refund_pending: Refund request sent to the acquiring bank, awaiting feedback on refund status.
	refunded: Transaction fully refunded.
	refund_rejected: Refund rejected.
md5_sig	MD5 signature to validate callback request. md5(transaction_id+status+secret_key) Deprecated! Please use md5_body_sig instead	yes
seq	Timestamp in UnixMilli format indicating when the callback was created.	yes
sep31_status	Status of the Sep31 transaction. Possible values: - completed - error	yes
refunded	Indicates whether the transaction has been refunded: true/false	yes
refunds.amount_fee	Fee associated with the refund according to the contract.	yes
amount_refunded	Amount to be refunded.	yes
amount_refunded_to_customer	The exact sum that will be send to customer	yes
refunds.payments[?].amount	Total amount to refund, including any applicable fees as per the contract.	yes
refunds.payments[?].amount_body	Amount that is due to the end customer	yes
refunds.payments[?].fee	Fee associated with the refund according to the contract.	yes
refunds.payments[?].id	Unique identifier (UUID) for the refund transaction.	yes
refunds.payments[?].external_id	External refund ID provided by the merchant during the refund request.	no
refunds.payments[?].rrn	Retrieval Reference Number, which is the refund identifier provided by the payment provider.	yes
refunds.payments[?].arn	Acquirer Reference Number, which is the refund identifier provided by the payment provider.	yes
refunds.payments[?].status	Refund status, which may be one of the following:	yes
	pending: Refund request sent, awaiting feedback from the acquiring bank.
	completed: Transaction fully refunded
	rejected: Refund rejected.
md5_body_sig	MD5 signature to validate callback request. md5(transaction_id+sep31_status+refunded+secret_key)	yes
deposit_details	Detailed information about the deposit transaction. Specific payload depends on the payment method Examples are:	no
	{ "payment_group": "bank_card", "bank_card_mask": "1000****0001", "from_first_name": "Saurabh", "from_last_name": "Ghodmare", "payment_method": "r:fab9dcd0-bb93-4f09-b65f-2edb69a3a213"}
	{ "payment_group": "bank_account"}
	{ "payment_group": "ewallet","ewallet_account_id": "475846215"}
	{ "binance_open_user_id": "8f825dd63a8dee291766c81cc4df5c62", "ewallet_account_id": "578144430", "payment_group": "ewallet" "payment_method": "a44ba598-bec9-439e-baef-4dc8b0ae2e4b:80210375-51a1-4ac7-8d83-d3b31857a818",
	payment_group field may be one of the following values: bank_card,cash_collection, crypto, ewallet,bank_account
merchant_external_id	External ID provided by the merchant in the original request.	no
amount_in	Amount the customer has paid.	yes
amount_out	Amount settled to the merchant’s account by the PSP.	yes
external_status	Status provided by the local payment provider	no
external_message	Error details provided by the local payment provider.	no

Remit Callback

Request example:

"payload": {
    "amount_body": 100.2,
    "amount_in": 100.2,
    "amount_out": 94.68,
    "asset": "stellar:PURPLE:GBT4VVTDPCNA45MNWX5G6LUTLIEENSTUHDVXO2AQHAZ24KUZUPLPGJZH",
    "delivery_currency": "iso4217:EUR",
    "payout_details": {
      "bank_card_mask": "401200******3010",
      "payment_group": "bank_card",
      "payment_method": "a7b5ac9a-dac2-46c7-919c-9e478e3daf62:1c032242-bc6f-4b0e-b8e9-7d3fca7a668f",
      "rrn": "435307914502"
    },
    "external_message": "The transaction was completed successfully",
    "md5_body_sig": "cee95760668eb0963ab1dc5304fb6046",
    "md5_sig": "6fc67e043cb47b3cd7066450959117fe",
    "merchant_external_id": "123321",
    "refunded": false,
    "sep31_status": "completed",
    "seq": 1724822157474,
    "status": "done",
    "transaction_id": "07f62464-fcf1-47b3-a804-3af29b884134"
  },

Request body contains the following elements:

Field	Description	Required
transaction_id	The Payment Service Provider (PSP) transaction ID.	yes
status	The current status of the transaction. Possible values include:	yes
	expired: The payment was not completed within the allotted time, and the transaction has expired.
	done: The transaction was successfully completed.
	refunded: The remit failed, and the funds were returned to the merchant.
	canceled: Transaction canceled by the payment provider.
md5_sig	MD5 signature to validate callback request. md5(transaction_id+status+secret_key) Deprecated! Please use md5_body_sig instead	yes
seq	Unix timestamp in milliseconds at the moment the callback was created.	yes
sep31_status	Status of the Sep31 transaction, which can be one of the following: - completed - error	yes
refunded	Boolean value indicating whether the transaction was refunded: true/false	yes
md5_body_sig	MD5 signature to validate callback request. md5(transaction_id+sep31_status+refunded+secret_key)	yes
payout_details	Details of the remit transaction, with specific fields depending on the payment method used. Example:	no
	{ "payout_details": { "payment_group": "cash_collection", "ready_to_receive": true, "collection_pin": "123987"}}
	payment_group field may be one of the following values: bank_card,cash_collection, crypto, ewallet,bank_account
merchant_external_id	A value of external_id field sent in initial request.	no
amount_in	The amount paid by the customer.	yes
amount_out	The amount settled by the PSP to the merchant’s account.	yes
external_status	Status provided by the local payment provider.	no
external_message	Error details, if applicable.	no

How to make a Refund

If your deposit transaction is in the completed status, then you can initiate a refund for it.

Depending on the payment method and issuer the refund process may take:

• 1 to 2 hours

• 1 to 15 bank days

• up to 8-10 weeks in rare cases.

Request example:

How to make a refund

curl POST https://fpf-api.proc-gw.com/api/v3/merchantGUID/TRANSACTION_ID/refund \
        --header 'X-App-Token: APP_KEY'
        --header 'X-App-Secret: APP_SECRET'
        --header 'Content-Type: application/json'
        --data-raw '{
                      "reason":"{DESCRIPTION}",
                      "external_id": "{YOUR_REFUND_EXTERNAL_ID}"
                    }


Request body contains the following elements:

Field	Description	Required
reason	Reason of the refund	no
external_id	Your refund external ID. The external_id field must be unique. If a refund is registered with a duplicated external_id, an error will be returned.	no

Example Response:

1. Status code 200, example body: {"id":"refund_id"}

2. Status code 400/500, example body: {"error":"bad_request, refund is not supported for this transaction"}

3. When external_id is duplicated, status code 400, example body:

   { "message": "bad_request, psp client refund deposit: {\"error\":\"saveTxWithRefund(): refundSvc.Set(): duplicate external_id\"}", "trace_id": "69f7bd2eebcf2834e8404ba6374902d0" }

Get Merchant Account Balance

Example request:

How to check account’s balance using merchant_cabinet API

curl https://merchant-api.aps.money/api/v2/merchantGUID/balance\
        --header 'X-App-Token: APP_KEY'
        --header 'X-App-Secret: APP_SECRET'


Example response:

{
   "data": [
       {
           "balance": 306.07,
           "asset": "USD",
           "asset_key": "ATUSD"
       },
       {
           "balance": 25,
           "asset": "EUR",
           "asset_key": "PURPLE"
       }
   ],
   "total": 332.57,
   "total_currency": "USD"
}

Get Rates

You can calculate the amounts, including rates and commissions, through our endpoint.

• When making a deposit, specify payin
• when remit, specify payout.

Additionally, when processing a remit, you can calculate the delivery_amount by considering the rates and commissions through the inverse-rates endpoint if you lack information about the amount. Use the delivery_amount as the amount field in the body of the request to the inverse-rates endpoint.

Example request:

Get Rates

curl POST https://fpf-api.proc-gw.com/api/v3/merchantGUID/[payin/payout/inverse]-rates \
              {
               "amount": 2,
               "fee_percent": 12,
               "fee_fixed": 10,
               "digits_asset": 2,
               "digits_delivery": 2,
               "rate": 30
              }


Example response:

  {
    "amount": 2,
    "delivery_amount": 367.2,
    "fee": 10.24
  }

Get Transaction History in CSV Format

This endpoint lets you fetch transactions as a CSV file. You can narrow down your results using the query parameters listed in the table below.

Example request:

How to get a list of transactions

curl https://merchant-api.aps.money/api/v2/merchantGUID/transaction-list/export/csv-stream\
        --header 'X-App-Token: APP_KEY'
        --header 'X-App-Secret: APP_SECRET'


Endpoint supports the following optional query parameters:

Parameter	Description	Example
date_from	Start date of the period in the 2023-10-02T00:00:00Z format. Transactions filtered by transaction creation date.	date_from=2023-10-02T00:00:00Z
date_to	End date of the period in the 2023-10-02T00:00:00Z format. Transactions filtered by transaction creation date.	date_to=2023-10-19T23:59:59Z
sort_by	Ascending or descending order of transactions. Available values: - ASC, - DESC	sort_by=ASC sort_by=DESC
kinds	Transaction type: Deposits or remits, or both. Available values: - 256 - deposits - 768 - remits	kinds=256 kinds=768 kinds=256,768
states	Transaction statuses. Available values: - Done - Pending - Expired - Canceled - Refunded - Chargeback	states=Done,Pending
payment_groups	Payment method category of transactions. Available values: - BANKCARD - CASH - CRYPTO - EWALLET - WIRETRANSFER	payment_groups=BANKCARD,CASH

Example response:

CREATED,UPDATED,TRANSACTION ID,EXTERNAL ID,STATUS,METHOD,TYPE,COUNTRY,BODY AMOUNT,USER FEE,MERCHANT FEE,BODY CURRENCY,CONVERSION RATE,CHARGED AMOUNT,CHARGED CURRENCY,CREDITED AMOUNT,CREDITED CURRENCY,UNIFIED ERROR MESSAGE,NUMBER OF REFUNDS,REFUNDED AMOUNT,REFUNDS FEE,REFUND ID,REFUND STATUS,REFUND AMOUNT,REFUND FEE,REFUND EXTERNAL ID
07.02.2025 14:53:59,07.02.2025 14:54:00,a59c6a44-1c02-4dd3-99c7-e34904e376ea,,done,BANKCARD,remit,WWC,15.00,1.15,0.00,USD,0.00,0.00,USD,0.00,EUR,,,,,,,,,
07.02.2025 14:53:53,07.02.2025 14:53:54,629c8656-2f48-403e-9f76-5f166f08b720,,done,BANKCARD,remit,WWC,15.00,1.15,0.00,USD,0.00,0.00,USD,0.00,EUR,,,,,,,,,
07.02.2025 14:53:46,07.02.2025 14:53:47,e315e783-30eb-429e-a71c-b123e18e5eba,,done,BANKCARD,remit,WWC,15.00,1.15,0.00,USD,0.00,0.00,USD,0.00,EUR,,,,,,,,,

CSV file contains the following transaction details:

Column	Description	Example
CREATED	Transaction creation date	10.07.2024 15:52:56
UPDATED	Transaction update date	11.07.2024 09:25:46
TRANSACTION ID	Transaction identifier in APS	143e4de9-0c91-48ea-a819-19d4ba013de7
EXTERNAL ID	Transaction identifier assigned by merchant	External_001
STATUS	Status of the transaction	done
METHOD	Payment method	BANKCARD
TYPE	Deposit or Remit	deposit
COUNTRY	Customer country	CHILE
BODY AMOUNT	Transaction amount without fees	16.00
USER FEE	Customer fee charged for payment processing	0.00
MERCHANT FEE	Merchant fee earned while payment processing	0.00
BODY CURRENCY	Transaction currency	USD
CONVERSION RATE	Currency rate between Body and Charged currencies. (0.00 if no conversion rate was applied)	0.00
CHARGED AMOUNT	Amount charged from customer	16.00
CHARGED CURRENCY	Currency of charged amount	USD
CREDITED AMOUNT	Amount credited to merchant’s account	16.00
CREDITED CURRENCY	Currency of credited amount	USD
UNIFIED ERROR MESSAGE	Error description for unsuccessful transactions	Transaction can't be processed, please contact support.
NUMBER OF REFUNDS	Number of refunds in case the transaction was refunded	1
REFUNDED AMOUNT	Total refunded amount including both amount returned to customer and refund fee	17.00
REFUNDS FEE	Total refund fees charged from the merchant to execute the refund	1.00
REFUND ID	Refund identifier in APS (this field is optional and empty by default)	e255a943-ddd8-401e-8f84-57ffc7eb29c9
REFUND STATUS	Status of the refund: completed, pending, or rejected (this field is optional and empty by default)	completed
REFUND AMOUNT	Amount that the customer receives (this field is optional and empty by default)	15.00
REFUND FEE	Refund fee applied to the merchant account for processing the refund (this field is optional and empty by default)	0.00
REFUND EXTERNAL ID	Refund identifier assigned by merchant (this field is optional and empty by default)	567118
